Typar Geocell GS - Slope Stabilization - GS-350/100
Panel Size: 16.4' x 23'
Cell Size: 13.8" dia. x 4" deep
Maximum Slope Angle: 1:2
Material: Non-Woven Polyethylene / Polypropylene
Minimum Order Quantity: 6 units
Other Sizes Available:
Additional GeoCell Models Available:
DT and DC series geocell also available. Please call (800) 524-4161 for additional information and pricing.
The TYPAR GeoCell GS cellular confinement system utilizes the strength and permeability of TYPAR Geotextiles to create a 3-Dimensional cellular confinement system. Manufactured from dark grey PP/PE bicomponent fiber geotextile, the cell walls are permeable to water, air and nutrients, increasing stability and vegetative performance. The TYPAR GeoCell GS system ships in compacted panel form and expands into a honeycomb formation to the desired shape and dimension on-site. The unique, lightweight, flexible material conforms to surface variations to improve ease of installation while resisting impact damage. A variety of infill materials, including native soils and recycled aggregates, may be used to reduce waste material and overall construction costs.

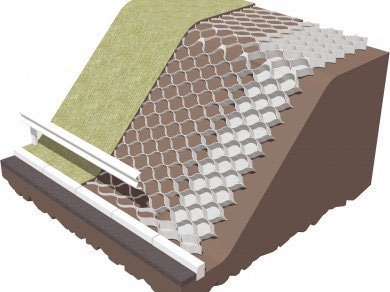

TYPAR GeoCell GS for Slope Protection
The cellular structure of the TYPAR GeoCell GS system improves resistance to erosive forces on steep, unstable, or slopes exposed to severe hydraulic or mechanical stresses. Variable cell depths and diameters provide cost-effective options for protection up to 1:1 (45 deg) slopes.
Click on the link below to download the Geocell installation guide:
Download GeoCell Installation Guide
Design & Application - Slope Stabilization
