The EnviroGrid can be filled with a variety of different infill types. You can build a reinforced grass driveway, strong gravel surface or a dirt area which is resistant to erosion. The possibilities are endless!
For load support, the 3" EnviroGrid with a gravel infill is rated for approximately 8,000 pounds and is best suited for light passenger vehicles, golf carts, ATV's etc. The 4" is rated at 40,000 lbs and is best suited for most driveway and parking lot applications. The 6" at 60,000 lbs is designed for emergency access or areas where heavy vehicles will be driving over regularly. The 8" is suited for specialty applications where heavy machinery will frequent.
It is required that a layer of geotextile fabric is placed below the EnviroGrid to prevent the gravel from absorbing into the ground while providing adequate strength and drainage. Additionally, J-Hooks, and staples / heavy duty zip ties are recommended to attached multiple panels.
View Fabric Options & Other EnviroGrid Accessories >
EnviroGrid is proudly manufactured in the USA.
The Geo Products manufacturing facility is ISO 9001:2015 certified by NSF, with all our products undergoing stringent testing on-site at our manufacturing facility. All EnviroGrid products are manufactured with 100% virgin HDPE resins and carry a 10-Year material warranty.
The EnviroGrid ground support system provides an enhanced support to your pavement system. By confining infill material lateral movement away from the applied load is reduced. The grid functions as a large mat and distributes the load over an extended area, spreading out the downward pressure. As a slope support system the EnviroGrid helps to keep infill in place and reduce erosion. Because the material is designed to drain water is allowed to flow through leaving the encased layer intact.
The EGA grid is
not designed for use in horse paddocks. Instead, see the similar LSG grid which is designed for and often used in equestrian applications. When installed correctly the LSG grid does an excellent job at reducing or eliminating mud in horse paddocks.
EGA20-6 (6 inch cell depth) infilled with
#57 stone with a 1" wearing layer can
provide 2.8" of rainwater storage.
• LIMITED ACCESS ROADS
• GRAVEL PARKING LOTS• BOAT RAMPS• FIRE ACCESS LANES• RV PARKING AREAS
(TURF / VEGETATED)
• OVERFLOW PARKING AREAS
• GREEN PARKING SPACES• GREEN ROOF AREAS• VEGETATED GROUND COVER

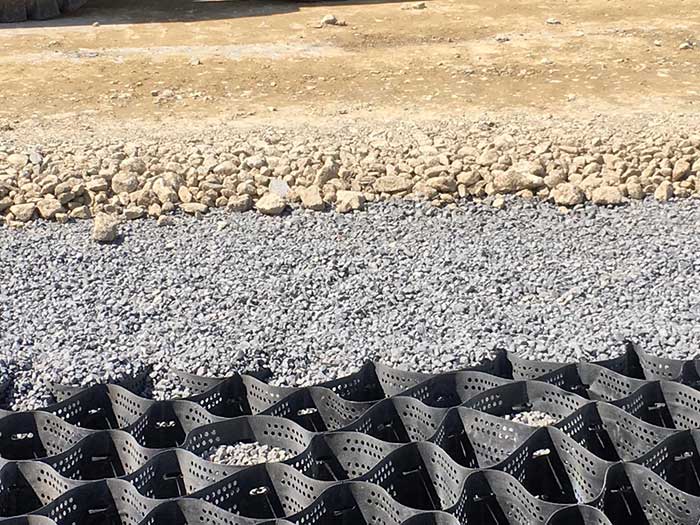

When used under a asphalt or concrete surface the EnviroGrid can help to provide stability and reduce the amount of aggregate required for stabilization.

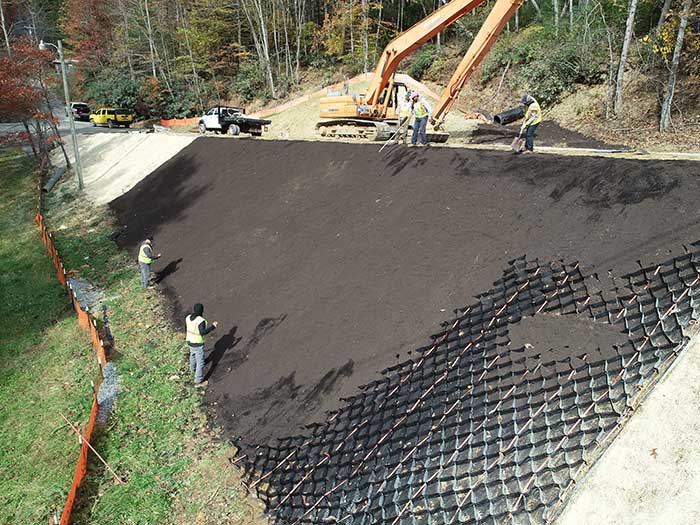

EnviorGrid can be used to stabilize hillsides and swales in additional to providing load support. The permeable geocells allow for water to flow through the material and help to keep the infill material from eroding.
Download a printable version of the EnviroGrid Installation Guide
Download a printable version of the EnviroGrid Specification Sheet
Learn how to install the EnvioroGrid in a ground stabilization application.
The Envirogrid geocell system has been utilized on thousands of installations worldwide since 1990. Please refer to the case studies below for project examples.

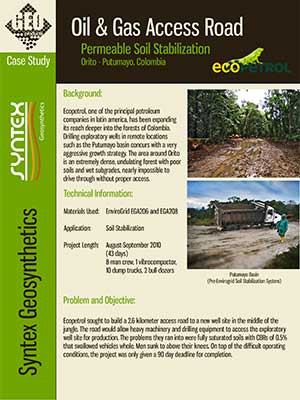

Oil & Gas Exploration Access Road - Columbia
Beach Front Stabilization and Tidal Erosion Control - Mississippi
Myrtle Beach International Airport Taxiway - South Carolina
Slope Erosion Control
Steep Slope Erosion Control - Panama
Steep Slope Erosion Control - Bijao Beach Resort - Panama
Riverbank Protection Wall - Panama
Roadside Embankment Retaining Wall - Panama
The EnviroGrid units ship compressed and ship by either LTL freight or UPS as pictured to the right. The compressed unit is able to be coiled to fit on a pallet or in a box.
Free Shipping is provided on all EnviroGrid orders.
EnviroGrid Shipping Time:
EnviroGrid orders typically ship same day if the order is placed before 12:00 noon EST. Transit times displayed in the map are listed in business days, are
approximate and are specific to EnviroGrid products only. The day that the order is shipped is not counted as a transit day.
The transit times displayed on the map are for standard ground shipping.
Download the technical drawing package which includes drawings for base stabilization, general details, slope erosion control applications, channel protection, retaining walls and more.
Download Drawings >
