Cell-Tek Geocell Ground Grid Paver - LSG-4 (9' x 24' x 4")
Cell-Tek Geocell Ground Grid Paver - LSG-4  (9' x 24' x 4")



Alternative Views:


Our Price: $313.08


Availability:: In stock
Product Code: LSG-4
Qty:

Description


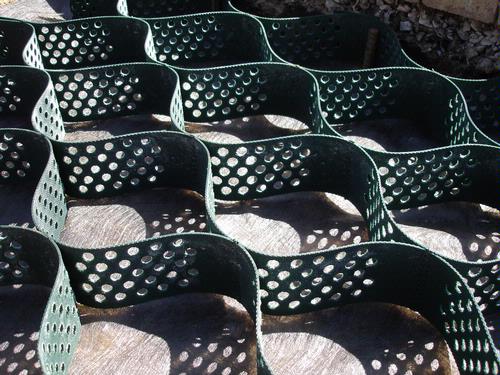

CELL-TEK Geocell Ground Grid Paver - LSG-4

  • Model: LSG-4
  • Size: 9' x 24'
  • Square Footage Per Grid: 215
  • Color: Green
  • Cell Depth: 4"
  • Cell Dimensions (LxW): 10.2" x 8.8"

  • Load Rating: 40,000 lbs (Maintenance Trucks)


  • FREE SHIPPING

  • Volume pricing available on orders over $7,000

  • Would You Like a Written Quote?

Fill With Gravel, Sand, Dirt or Grass

The LSG series grid can be filled with a variety of different infill types. You can build a reinforced grass driveway, strong gravel surface or a dirt area which is resistant to erosion. The possibilities are endless!



No Gravel Base Required!

The LSG series does not require a gravel base. This is due to both the depth and amount of compaction which takes place within the confined cells. Simply lay an approved geotextile below the grid and fill. The result is a savings in both labor and material cost.



Fabric for Beneath LSG Grid (Required)

It is required that a layer of geotextile fabric is placed below the LSG grid to prevent the gravel from absorbing into the ground. The recommended DuPont fabrics are non-woven geotextiles which provides strength and excellent drainage.

View Fabric Options & Other LSG Accessories >

LSG SERIES LOAD SUPPORT GRID provides superior support to your pavement system. The system confines materials and prevents lateral movement away from the applied load. The stabilizer grid acts as a large mat, by spreading the load over an extended area while increasing the load bearing capacity of the pavement surface.

APPLICATIONS INCLUDE:

  • Porous Pavements
  • Overflow Parking Areas
  • Access Roads
  • Fire Access Lanes
  • Boat Ramps
  • Parking Lots
  • Golf Cart Paths
  • Roadside Shoulder Reinforcement
  • Driveways
  • Ports & Marinas
  • RV Parking
  • Trails & Pathways
  • Pavement Base Support
  • Permeable Paver Support
  • Horse Paddocks

BENEFITS:

  • Reduce Base Thickness up to 50%
  • Reduce Subgrade Stress
  • Reduce Installation Cost

ENVIRONMENTAL BENEFITS:

  • Reduce Stormwater Runoff
  • Natural Recharging of Groundwater
  • Capture Airborne Pollutants
  • Safely Distributes Car Oil Leakage
  • Reduce Hot Surface Temperatures

STORMWATER STORAGE:

LSG-6 (6 inch cell depth) infilled with
#57 stone with a 1" wearing layer can
provide 2.8" of rainwater storage.

EARN LEED BUILDING CREDITS:

Reduced Site Disturbance - Heat Island Effect
Recycled Material Content - Stormwater Management

Features
Train near retaining wall



Gravel

AGGREGATE PAVING
(NON-VEGETATED)

• ACCESS ROADS
• GRAVEL PARKING LOTS
• PORTS & MARINAS
• BOAT RAMPS
• FIRE ACCESS LANES
• RV PARKING

Train near retaining wall




Gravel-Lok

BONDED AGGREGATE SURFACE

• WALKWAYS & PATHS
• PATIOS & COURTYARDS
• GOLF COURSES
• TREE PITS
• HISTORICAL SITES

Train near retaining wall




Pavers

PAVER LOAD SUPPORT

• PAVER BASE SUPPORT
• DRIVEWAY BASE SUPPORT
• RETAINING WALL SUPPORT
• BASE REDUCTION SYSTEM

Train near retaining wall







Grass

GREEN PAVING
(VEGETATED / TURF)

• OVERFLOW PARKING
• GREEN PARKING SPACES
• GREEN ROOFS
• VEGETATED GROUND COVER


    Installation Video:
    Gravel Driveway

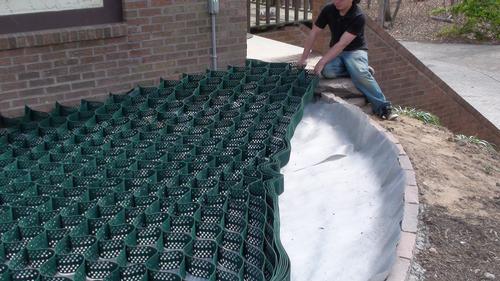

    Learn how to install the LSG Series Grid in a gravel driveway application

Installation Guide

Download a printable version of the LSG Series Grid Installation Guide


Product Brochure

Download a printable version of the LSG Series Product Brochure


    Installation Video:
    Grass Reinforcement

    Learn how to install the LSG Series Grid in a grass reinforcement application


    Installation Video:
    Connecting Grids

    Learn how to connect the LSG Series Grids together


    Installation Video:
    Load Support for Paver Driveway

    Learn how to install the LSG Series Grids in a load support application

Load Support

Geocellular Confinement takes infill materials and produces a stiff base by creating a semi-rigid slab. The system prevents the lateral displacement of infill materials which eliminates rutting and washboarding usually associated with gravel pavements. The system allows for a reduction in overall base thickness, as well as enabling subgrade materials to withstand more than 10 times the number of cyclic load applications, without the appearance of deflection when compared to unconfined aggregates. GCS allows for the use of lower quality infill materials in situations where quality aggregates are not readily available and helps to create pavements on soft soil subgrades. When it comes to load support in porous paving applications, Cell-Tek's LSG SERIES delivers the competitive advantage.

PRODUCT LSG-3 LSG-4 LSG-6
TYPE OF TRAFFIC Cars &
Pickup Trucks
Maintenance
Trucks
Heavy Trucks &
Fire Access
LOAD DETAILS 8000 lb.
Axle Loads: 18kN
H10 Loading
40,000 lb.

Axle Loads: 75kN
H20 Loading
80,000 lb.

Axle Loads: 145kN
SUBGRADE CBR >3% CBR
Normal Hard Surface
>3% CBR
Normal Hard Surface
>3% CBR
Normal Hard Surface
SURFACE WEAR LAYER (overfill) 2" 2" 2"
TOTAL SYSTEM THICKNESS 5" 6" 8"
GEOTEXTILE (filtration & separation) YES
Nonwoven
YES
Nonwoven
YES
Nonwoven
EQUIVALENCY TO UNCONFINED GRAVEL 12" - 14" 16" - 20" 24" - 30"
WATER STORAGE 2" 2.4" 3.2"

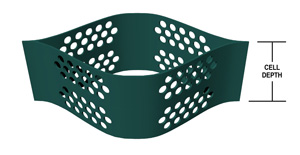

PRODUCT CELL DEPTH
LSG-3 3" (75mm)
LSG-4 4" (100mm)
LSG-6 6" (150mm)

Expanded Grid Dimensions 9' X 23.92' (215SF)
Nominal Cell Dimensions 9.9" x 9.9" x Cell Depth
Packaged Dimensions Per Grid 24" x 54" x Cell Depth
Packaged Dimensions Full Pallet 48"W x 54"D x 40"H
Collapsed Grid Length 18.5 FT

PROPERTIES TEST METHOD TEST VALUE
Material Composition ASTM D1505 Polymer; virgin HDPE Density: 0.9574g/cm3
Normal Sheet Thickness ASTM D5199 1.33mm
Environmental Stress Cracking ASTM D1693 3500 Hrs.
Stabilizer ASTM E682 Hindered amine light stabilizer (HALS) 1.0% by weight
Short Term Seam Peel Strength 3" (75mm)
4" (100mm)
6" (150mm)
1065N
1542N
2170N
Long Term Seam Peel Strength A 100mm (4 inch) wide section sample shall support a (160 lb.) load for a period of 7 days (168 hrs.) minimum in a temperature controlled environment undergoing a temperature change on a 1 hour cycle from ambient room temperature to (130F)

SPECIFICATIONS LSG-3 LSG-4 LSG-6
Weight Per Grid 37.5 Lbs. 50 Lbs. 75 Lbs.
Units Per Pallet 24 18 12
SF Per Pallet 5160 3870 2580

Single Cell

EXPANDED GRID 9' x 23.92' (215 SF)

COLLAPSED GRID


LSG Series Grid Shipping Time:

LSG grid orders typically ship same day if the order is placed before 12:00 noon EST. Transit times displayed in the map are listed in business days, are approximate and are specific to LSG grid products only. The day that the order is shipped is not counted as a transit day.

The transit times displayed on the map are for standard ground shipping.



Additional Technical Information Downloads

POROUS PAVER w/ LSG SERIES

PROPER DRAINAGE w/ LSG SERIES

RESIDENTIAL DRIVEWAY w/ LSG SERIES

PERVIOUS SUPPORT SYSTEMFOR PERMEABLE PAVERS

REGULAR & POROUS PAVEMENT BASE STABILIZATION DETAIL (CONCRETE)

REGULAR & POROUS PAVEMENT BASE STABILIZATION DETAIL (ASPHALT)

NON-VEGETATED / POROUS PAVING(WITH J-HOOKS)

VEGETATED GREEN PAVING (WITH J-HOOKS)

SEAM TENSILE TESTING RESULTS

J-HOOK SPECIFICATIONS & PLACEMENT

J-HOOK MEASUREMENTS
18” height (JHR18) - CLICK HERE
24” height (JHR24) - CLICK HERE




Share your knowledge of this product. Be the first to write a review »
