Typar Geocell GS - Load Support - GS-220/200

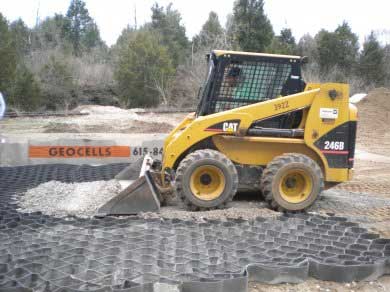

Typar Geocell roll for gravel grid



Alternative Views:


Our Price: $784.38
(Minimum order):  3


Availability:: In stock
Product Code: GS-220-200
Qty:

Description


Typar Geocell GS - Load Support GS-220/200

Model:
GS-220/200
Code:
124138
Brand: Typar
Panel Size:
20' x 10'
Cell Size: 8.6" dia. x 8" deep
Material: Non-Woven Polyethylene / Polypropylene
Minimum Order Quantity: 3 units


Other Sizes Available:

TYPAR GEOCELL GS
CODE PANEL SIZE CELL DEPTH / DIA APPLICATION
GS-250/100 16.4' x 23' 4" / 10" Pedestrian/Light Vehicle Load Support and Slope Protection
GS-250/150 16.4' x 23' 6" / 10" Light Vehicle Load Support and Slope Protection
GS-350/100 16.4' x 23' 4" / 13" Slope Protection
GS-350/150 16.4' x 23' 6" / 13" Slope Protection
GS-220/200 20'x10' 8" / 8" Heavy Vehicles Load Support

Additional GeoCell Models Available:
DT and DC series geocell also available. Please call (800) 524-4161 for additional information and pricing.

Fixing J-Pins / Pegs:
Used to secure the geocell material in place.

Typar Fixing J-Pins >

The TYPAR GeoCell GS cellular confinement system utilizes the strength and permeability of TYPAR Geotextiles to create a 3-Dimensional cellular confinement system. Manufactured from dark grey PP/PE bicomponent fiber geotextile, the cell walls are permeable to water, air and nutrients, increasing stability and vegetative performance. The TYPAR GeoCell GS system ships in compacted panel form and expands into a honeycomb formation to the desired shape and dimension on-site. The unique, lightweight, flexible material conforms to surface variations to improve ease of installation while resisting impact damage. A variety of infill materials, including native soils and recycled aggregates, may be used to reduce waste material and overall construction costs.

TYPAR GeoCell GS for Load Support
TYPAR GeoCell GS cells transfer downward forces laterally, reducing loads on underlying soils. The cellular confinement system is an ideal solution for providing stabilization over poor soil conditions, reducing constructed profile depth and cost, protecting soil and roots from compaction, and providing site access for light, heavy, and industrial vehicles.

  • Suitable applications
  • Base Reduction
  • Improved Access Over Poor Soils
  • Increased Longevity
  • Highways
  • Tree Root Protection
Free Shipping
Is Your Order Total More Than $15,000?
Contact us for volume pricing.

(800) 524-4161
Would You Like a Written Quote?
Click Here >

Installation

Click on the link below to download the Geocell installation guide:

Download GeoCell Installation Guide

GeoCell Brochure

GeoCell Brochure

Design & Application - Load Support

LEED Credits:

LEED Credits


Data Sheet:

Typar GeoCell

CAD Details:

Click here to visit Typar.com to download CAD details
