What Is the NDS Root Barrier Panel?

The NDS Root Barrier Panel (SKU: EP-1850, size 18″ × 24″, Pack of 25) is a rigid plastic barrier designed to redirect root growth downward and away from nearby hardscape features.

Key features include:

• Anchor Lock™ external flange at the base—to lock the barrier into the soil and resist uplift or horizontal movement.

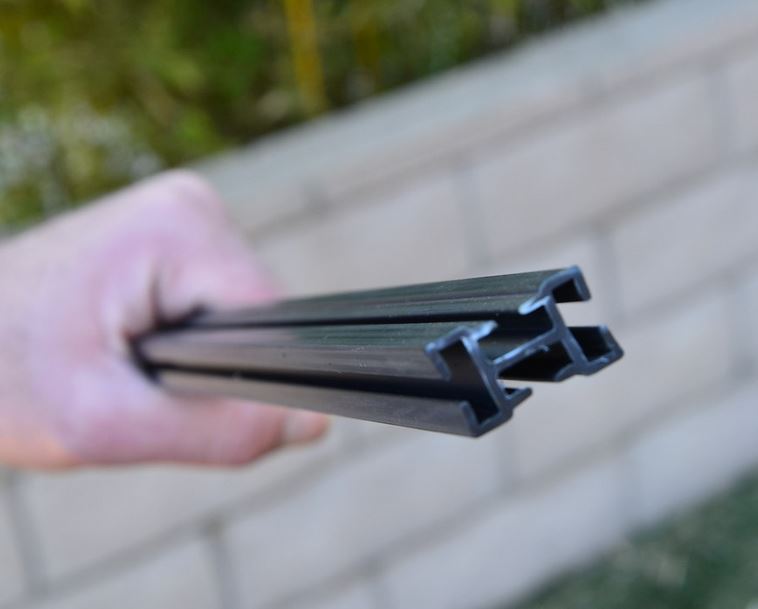

• Quad Clip™ Joiner Strip pre-installed—to connect panels easily without adhesive or staples.
• “T”-top edge that prevents roots from growing over the top of the panel.
• UV-inhibited material made from up to 50% post-consumer HIPP (High Impact Polystyrene) for durability and sustainability.

Why Install a Root Barrier?

Roots typically grow outward and upward in search of moisture and oxygen. When planted too close to concrete slabs, sidewalks, patios or building foundations, roots can lift, crack or undermine these surfaces. A root barrier such as this acts as a directional tool: it forces roots downward and away from vulnerable hardscape while still allowing tree health and growth.

Typical scenarios where a root barrier is helpful include:

• Trees planted within 8′-15′ of a driveway or sidewalk.
• Shrubs or hedges adjacent to patios or outdoor living areas.
• Tree planting near building foundations, utilities or pool decks.

Pro Tip: Even mature trees with wide spreading roots can be managed with a properly installed barrier—just match the barrier depth and height to the expected root zone. The NDS product is available in multiple depths (12″, 18″, 24″, 36″ & 48″) so you can choose per species and site.

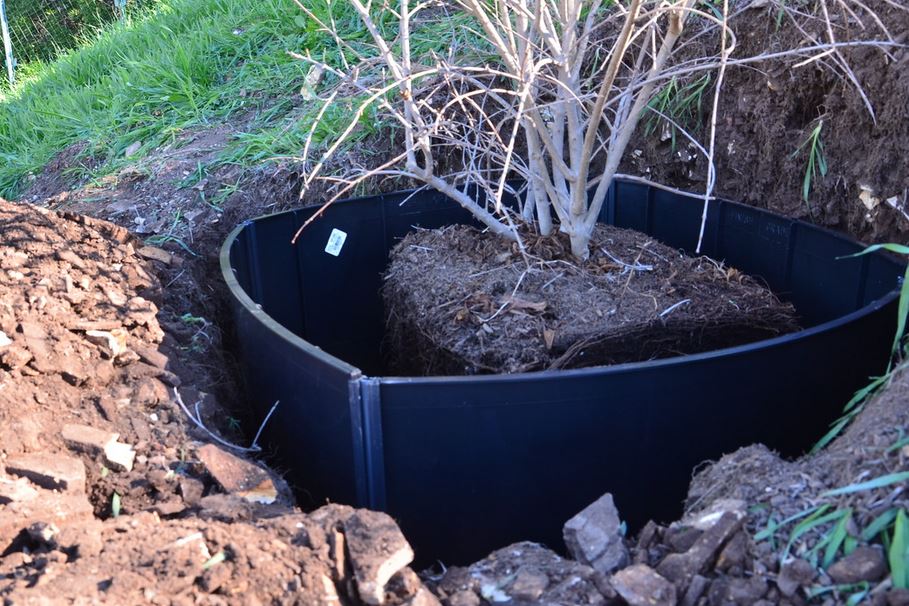

How to Install the NDS Root Barrier Panel

Follow these step-by-step instructions to ensure correct performance and longevity:

1. Excavate a trench along the hardscape or feature to be protected. Depth should match the barrier height (e.g., 18″) and width sufficient to insert the panel. The bottom should be level and compacted.
2. Place the panels flush to the hardscape edge with the “T”-top flange just above final grade so the barrier extends downward and roots are directed below the slab edge.
3. Join panels together using the Quad Clip™ Joiner Strip—no adhesives or staples required. Ensure panels align tightly with no gaps.
4. Lock the barrier in place by engaging the Anchor Lock™ flange at the base and backfilling carefully with native soil or select fill, tamping lightly to prevent movement.
5. Finish grade and plant the tree or shrub on the protected side, ensuring that the species root zone directs toward the barrier-protected side. Keep root barrier edge exposed slightly (½″-1″) so turf mowing won’t damage it.

Maintenance and Long-Term Performance

• Inspect annually for any uplift or exposure of the top flange; if exposed, re-compact adjacent soil.
• Monitor tree health — root barriers direct roots downward but don’t inhibit growth; ensure adequate moisture and nutrients.
• When mowing near the barrier edge, maintain a small buffer (≈1″) so edging blades don’t nick the top flange.
• For high-traffic or turn zones (driveways), consider back-filling with ¾″ aggregate to reduce lateral movement from vehicle loads.

Tip: Even though the barrier is engineered for durability, proper soil compaction and sufficient trench depth are critical. Installation shortcuts can compromise performance even with a quality product.

Specifications & Next Steps

The EP-1850 18″ × 24″ panel is part of the NDS Modular EP Series Root Barrier Panels. It offers professionals and landscape contractors a scalable solution for hardscape-adjacent planting zones.

Key specifications at a glance:

• Height: 18″ (other heights: 12″, 24″, 36″, 48″)
• Width: 24″ per panel
• Material: UV-inhibited, up to 50% post-consumer HIPP
