Sleeve-it SD1 Retaining Wall Fence System - Strata

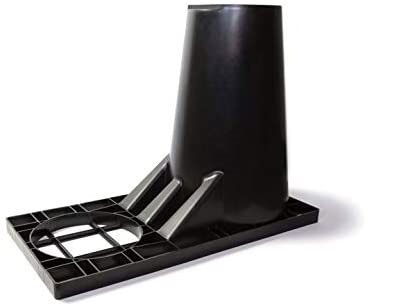

Sleeve-it SD-1 for retaining walls Strata Systems



Alternative Views:


Price: $612.04



Availability:: In stock
Product Code: SD-1
Qty:

Description


Strata Sleeve-It Retaining Wall Fence System (Carton) - 5 Units

Model: SD-1
Brand: Strata
Quantity Per Carton: 5 units
Size: Height: 23.4", Width: 15.3", Depth: 30.6"

Free Shipping


Note: This product listing is for a case of 5 Sleeve-It units.

Sleeve-It Order Total Over $10,000?
Contact us for volume discounts.

(800) 524-4161

Would You Like a Written Quote?
Click Here >


When Your Retaining Wall Requires a Fence

Sleeve-It® SD-1 is a pre-engineered fence post anchoring solution for enhancing below-grade foundational stability in fences placed on top of a segmental retaining wall (SRW). Because of its cantilevered form and other properties, using Sleeve-It during the SRW build permits a code-compliant fence to be constructed eliminating the 36” offset requirements of IBC 1015.2.

Sleeve-it system with retaining wallHow Sleeve-It Works

The face of a Segmental Retaining Wall consists of dry stacked, mortarless concrete units. These units cannot resist an overturning moment generated when a load is applied to a fence post. The Sleeve-It System uses a traditional cantilever design to engage the overlying soil mass, thereby providing resistance to the fence load.


Simple Construction:

1: Install the cantilevered Sleeve-It units near the elevation of the top of the wall

2: Fill and compact soil to the top of the sleeve

3: Leave the disposable lid on the sleeve until the fence installer places the fence post in the sleeve and fills with concrete

4: The fencing contractor finished the fence, supported by the buried Sleeve-It System

sleeve-it unit installed on retaining wall side view

Benefits

  • Eliminates the 36" offset requirements of IBC 1015.2
  • Maximizes useable real estate at the top of a retaining wall
  • Reduces risk for retaining wall designers resulting from fence integration
  • Shortens construction time for retaining walls with summit fencing


Additional Information

Technical Note

Preferred Specification

Product Data

Sleeve-It Installation

Sleeve-It Brochure
