NDS EZ Roll Grass Pavers - EZ4X24 - 4' x 24' Roll





Questions? Call (800) 524-4161

FREE SHIPPING
Our Price: $378.07

Availability:: In stock
Product Code: EZ4X24
Qty:

Description


NDS EZ Roll Grass Pavers

  • Model: EZ4X24
  • Size: 4' x 24'
  • Square Footage Per Paver: 96
  • Color: Black
  • Material Thickness: 1"
  • Made in the USA

  • Ultra-Strong Hexagonal Design:Fused hexagonal design provides superior strength and long term durability when compared to pavers which rely on linked circles or squares for strength.


  • FREE SHIPPING

  • Volume Pricing of $350 Per Roll on Orders of 5+ Rolls. Contact us for volume pricing on orders of 25+ rolls.

  • Would You Like a Written Quote?

  • Looking for a Larger Roll?
    4' x 150' rolls are also available.

  • Looking for a paver that can be filled with gravel? Consider the TT-24 or GP4X150

WORLD'S STRONGEST
ROLLED PERMEABLE PAVER.

How does the NDS EZ-Roll measure up against it's competitors? View the detailed 3rd party testing report.

Looking for a Product to Protect Your Existing Grass?

Grass protection mesh can be installed over your existing grass providing light / medium duty reinforcement.

Engineered for Strength

EZ Roll Grass Pavers are a sustainable alternative to traditional paving methods. By protecting the root zone and preventing soil compaction, the pavers allow healthy grass to thrive in areas that would traditionally have impervious hardscaping installed.

Recommended Applications: Golf cart paths, service roads, jogging tracks, bike paths, residential driveways, parking lots, overflow parking lots, roadways shoulders, emergency vehicle access roads, truck maintenance and equipment yards, construction entrance soil stabilization.

In addition to these load applications, EZ Roll Grass Pavers are also an effective solution for erosion control on slopes and in swales.

NDS Permeable Paver Brochure

Download a printable version of the NDS permeable paver brochure

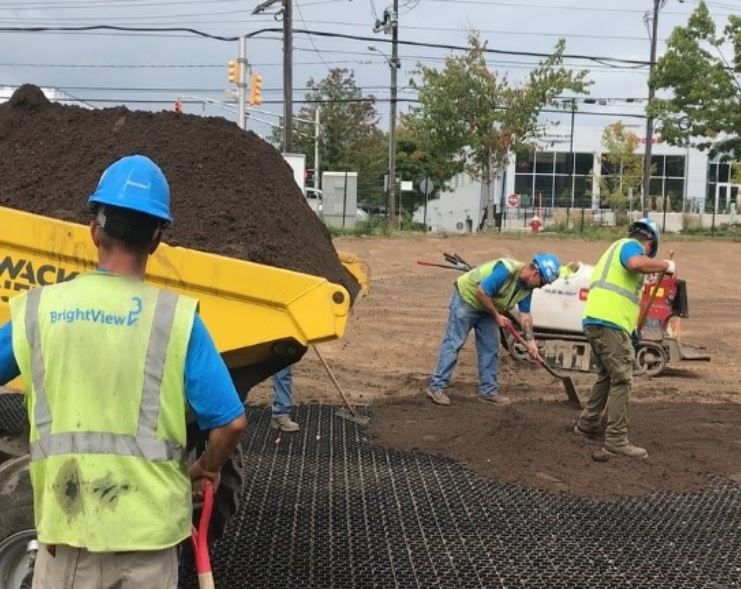

A sandy loam fill allows water to filter through the base while supporting healthy root growth.

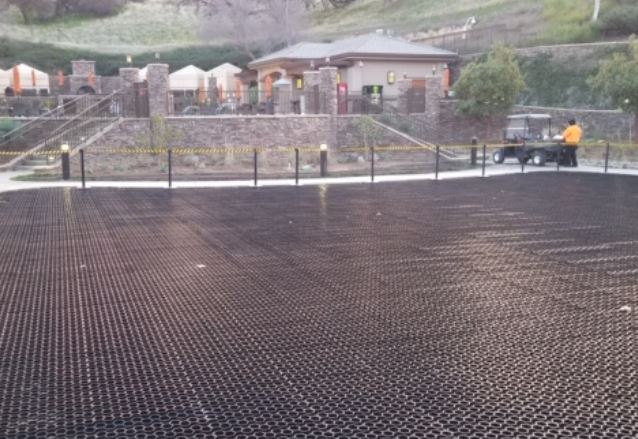

EZ Roll Grass Paver at Dry Creek Elementary allowed the school to use this grassy area as an overflow parking lot.


Flexible plastic paver mats are pre-assembled into rolls for easy installation on the job site.


Installation

  • 4" - 6" aggregate base must be installed directly below the pavers (see illustration below). The grass roots will grow into the aggregate (gravel) and anchor firmly. If an aggregate base isn't installed, a "cookie cutter" effect will take place and the pavers can sink into the soil.
  • If an aggregate base isn't practical for the project, consider the TT-24 Grass Pavers which feature a tapered bottom and can be placed directly over soil without sinking.

  • EZ4X24 Installation Diagram (click to enlarge):

Installation Guide & Technical Information

Download a printable version of the EZ-Roll Installation Guide

Environmental Benefits

  • Permeable surfaces eliminate or reduce stormwater runoff
  • Stormwater filters naturally through subsurface, reducing pollutants
  • Urban Heat Island (UHI) effect is mitigated as grass does not absorb as much heat energy as traditional hardscapes
  • Pavers are made of 100% recycled plastic

Competitive Benefits

  • Empty cells have a compressive strength of 57,890 psf
  • Product ships in large rolls for easy roll-out
  • Grass root zone is reinforced and protected by gridwork of hexagonal cells

  • Reduces demands put on landscape drainage system

  • Less expensive to maintain over time than traditional hardscaping

  • More pleasing aesthetically than traditional hardscaping

Case Studies

Case study: Emergency access lane - Denton Sr Center - Denton, TX
Download PDF

Case study: Emergency access lane - DLR Savvis Center - San - Jose, CA
Download PDF

Case study: Emergency grass access lane - Trump Taj Mahal Casino Resort - Atlantic City, NJ
Download PDF

Case study: Fire lane - Dell Customer Care Center - Oklahoma City, TX
Download PDF

Case study: Headstone stabilization - LA National Cemetery - Los Angeles, CA
Download PDF

Case study: Overflow parking - LeMay America's Car Museum - Tacoma, WA
Download PDF

Case study: Overflow parking lot - Keller High School - Tulsa, OK
Download PDF

Case study: Right-of-way - Walden Ave - Depew, NY
Download PDF

Additional Technical Information

EZ Roll Grass Pavers Guide Specification 4 13 15
Download Word DOC

Grass Paver EZ Roll Flexible Porous Paving Sec 32 12 43
Download Word DOC

Grass Paver EZ Roll Porous Pavement Sec 02795
Download Word DOC

Bio Retention Pavers for Detention
Download PDF DWG

EZ Roll Grass Pavers Edging, Type 1
Download PDF DWG

EZ Roll Grass Pavers Edging, Type 2
Download PDF DWG

EZ Roll Grass Pavers Edging, Type 3 Reflector
Download PDF DWG

EZ Roll Grass Pavers Fire Heavy Load
Download PDF DWG

EZ Roll Grass Pavers Liberty Mountain Overflow Parking Light Load
Download PDF DWG

EZ Roll Grass Pavers Light Load
Download PDF DWG

EZ Roll Grass Pavers Medium Load
Download PDF DWG

EZ Roll Grass Pavers Staking
Download PDF DWG

Infiltration Paver for Infiltration
Download PDF DWG

EZ Roll Grass Pavers
Download PDF
