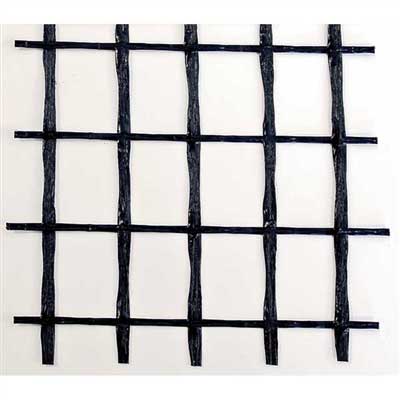

Geogrid Universal, Soil Stabilization Grid 4' x 45'
Universal Geogrid Soil Stabilization U445



Alternative Views:



View Pricing and Order Online Below ▼



Why Buy Geogrid from Landscape Discount?

  • We only sell professional-grade geogrid from trusted US based manufacturers which is ASTM tested to meet specific technical guidelines.
  • We do not sell "no-name" or "off-brand" geogrid. We only sell geogrid made by trusted manufacturers with proven multi-decade track records and a solid reputation of standing behind their grid.
  • We deliver the exact geogrid that you ordered. We never substitute for other brands or grid types without the explicit consent from the customer.
  • We pickup our phone. When you call you quickly reach a helpful, live person happy to answer your product and order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

Price: $140.70



Availability:: In stock
Product Code: U445
Qty:

Description


Geogrid Universal, Soil Stabilization Grid 4' x 45' Roll

Model: U445
Brand: SRW
Size: 4' x 45'
Square Yards Per Roll: 20
Color: Black

Maximum Retaining Wall Height: 6'

Free Shipping

Building a wall taller than 6 feet?
See our other geogrid products for high walls.



Looking for Roadbase Geogrid? View Selection >


Geogrid is a reinforcement fabric which provides strength to retaining walls and helps to prevent against collapse. In order to provide effective stability, geogrid is placed in multiple layers within the retaining wall. (see illustration below)


Tufftrack Grass Paver

Tufftrack Grass Paver
Click to Enlarge the Above Diagram


Applications

  • Retaining walls
  • Steep slopes
  • Sub-grade stabilization
  • Soft soils under embankments
  • Waste containment/landfills


Specifications

Download Specification Sheet - Universal Geogrid >


Installation

Download Geogrid Installation Guide >


Sizes Available:

Universal Geogrid

Bi-directional geogrid which may be installed either perpendicular or parallel to the wall for lengths 3, 4 or 6 feet.

Universal - Bi-Directional - LTDS 636 - Walls up to 6'
PART NUMBER SIZE SQ YDS/ROLL MIN. ORDER QUANTITY
GSRW U350 3'x50' 16.67 1
GSRW U445 4'x45' 20.00 1
GSRW U450 4'x50' 22.22 1
GSRW U650 6'x50' 33.33 1

3 Series Geogrid

Perfect for retaining walls up to 10 feet in height and is bi-directional. This geogrid may be placed parallel to or perpendicular to the retaining wall.

3 Series - Bi-Directional - LTDS 1093 - Walls up to 10'
PART NUMBER SIZE SQ YDS/ROLL MIN. ORDER QUANTITY
GSRW 3450 4'x50' 22.22 1
GSRW 365 6'x50' 33.33 1
GSRW 3615 6'x150' 100.00 1
GSRW 31215 12'x150' 200.00 1

5-9 Series Geogrid

Uni-directional. This geogrid must be placed perpendicular to the retaining wall to retain its strength.

5 Series - Uni-Directional in Roll Direction - LTDS 1919
PART NUMBER SIZE SQ YDS/ROLL MIN. ORDER QUANTITY
GSRW 565 6'x50' 33.33 1
GSRW 5615 6'x150' 100.00 1
GSRW 51215 12'x150' 200 1
7 Series - Uni-Directional in Roll Direction - LTDS 2740
PART NUMBER SIZE SQ YDS/ROLL MIN. ORDER QUANTITY
GSRW 7615 6'x150' 100.00 1
GSRW 71215 12'x150' 200.00 1
8 Series - Uni-Directional in Roll Direction - LTDS 3412
CALL FOR PRICING: (800) 524-4161
PART NUMBER SIZE SQ YDS/ROLL MIN. ORDER QUANTITY
GSRW 81215 12'x150' 200.00 1
9 Series - Uni-Directional in Roll Direction - LTDS 4137
CALL FOR PRICING: (800) 524-4161
PART NUMBER SIZE SQ YDS/ROLL MIN. ORDER QUANTITY
GSRW 91215 12'x150' 200.00 1

Road Base Geogrid

Bi-directional. This geogrid must be rolled out in the direction of the road.

Road Base Reinforcement
CALL FOR PRICING: (800) 524-4161
PART NUMBER SIZE
GSRW RB 11 12'x150'
GSRW RBPP 11 13.1'x246'
GSRW RB 12 12'x150'
GSRW RBPP 12 13.1'x164'





More Geogrid


We also offer uni-directional 10 Series, 11 Series, 12 Series, 18 Series, 19 Series and 35 Series. In addition, we offer pricing on Synteen, Mirafi and Strata geogrid. These are non-stocking items but are available upon request.

SRW Products engineers use LTDS calculations to identify and reduce factors which can impact the long-term performance of a geotextile reinforced system. This allows us to offer a variety of products.
